AdGuard Home

AdGuard Home is a network-wide ads & trackers blocking DNS server.

After set-up, it will cover all your home devices, and you don’t need any client-side software for that.

With the rise of Internet-Of-Things and connected devices, it becomes more and more important to be able to control your whole network.

It operates as a DNS server that re-routes tracking domains to a “black hole”, thus preventing your devices from connecting to those servers.

As a network-wide ad-blocker, AdGuard Home competes with Pi-hole. Here is a comparison table between the two:

As you can see, there is no clear winner. Most people would choose Pi-Hole as it has a larger, more well-established community. I opted for AdGuard Home because it has a simpler installation process due to very minimal dependancies.

I am using dnsmasq for my DNS and DHCP needs. It is quite flexible and configurable. There is some things that I am addressing with AdGuard Home that I was never able to address with dnsmasq itself.

• Ad Blocking: While it is possible to download block lists and add them to dnsmasq, this has to be done manually and it was difficult to keep up to date.
• Reporting and stats: dnsmasq is able to log DNS queries, you have to create repots and generate statistics on your own.
• DNS interface: dnsmasq lacks this completely.

AdGuard Home does not cover all the functionality that dnsmasq provides such as:

• tftp for PXE booting
• No DHCP configuration for IPv6 (at least I couldn't find instructions for it)
• CLI integration

At the end, I am using AdGuard Home and dnsmasq in combination.

How does AdGuard Home compare to traditional ad blockers

It depends.

DNS sinkholing is capable of blocking a big percentage of ads, but it lacks the flexibility and the power of traditional ad blockers. You can get a good impression about the difference between these methods by reading this article, which compares AdGuard for Android (a traditional ad blocker) to hosts-level ad blockers (which are almost identical to DNS-based blockers in their capabilities). This level of protection is enough for some users.

Additionally, using a DNS-based blocker can help to block ads, tracking and analytics requests on other types of devices, such as SmartTVs, smart speakers or other kinds of IoT devices (on which you can't install traditional ad blockers).

Known limitations

Here are some examples of what cannot be blocked by a DNS-level blocker:

• YouTube, Twitch ads;
• Facebook, Twitter, Instagram sponsored posts.

Essentially, any advertising that shares a domain with content cannot be blocked by a DNS-level blocker.

Is there a chance to handle this in the future? DNS will never be enough to do this. Our only option is to use a content blocking proxy like the standalone AdGuard applications.

Installation

AdGuard Home is hosted on github. You can download a pre-build binary from its releases page. Since AdGuard Home is developed in Go language, its binaries seem to be fairly portable.

Installing on Alpine Linux is fairly simple. I am using an Ansible playbook for this, but the process is as follows:

0. I am using dnsmasq with AdGuard Home. So the pre-requisite step is to change the dnsmasq so that it does not listen on port 53/UDP. This is done with the line:

   port=5353

1. Download binary from the releases page.
2. Unpack the binary into your destination directory. I use /usr/local/lib/AdGuardHome.
3. AdGuard Home reads configuration and saves some data in its installation directory. I relocate these via symbolic links:

   agh_home=/usr/local/lib/AdGuardHome
   ln -s /etc/AdGuardHome.yaml ${agh_home}/AdGuardHome.yaml
   ln -s /var/lib/AdGuardHome ${agh_home}/data

4. Create the start|stop scripts. I am using:

   #!/bin/sh
   # Startup script
   appdir=/usr/local/lib/AdGuardHome
   mkdir -p "$(readlink -f "$appdir/data")"
   chmod 0700 "$(readlink -f "$appdir/data")"
   if [ ! -f /etc/AdGuardHome.yaml ] ; then
     cp /etc/AdGuardHome.proto /etc/AdGuardHome.yaml
   elif [ /etc/AdGuardHome.proto -nt /etc/AdGuardHome.yaml ] ; then
     cp /etc/AdGuardHome.proto /etc/AdGuardHome.yaml
   fi
   $appdir/AdGuardHome &

   and

   # Shutdown script
   #!/bin/sh
   killall AdGuardHome

   The startup script is doing a few things:

   • Make sure that the data directory has the right permissions.
   • Initialize configuration if needed (More on that later).
5. The default configuration will listen on port 3000/TCP. Connect to it with a web browser to configure AdGuard Home.

Configuration

Actually, for the initial configuration I prefer to use prepared file. This is the AdGuardHome.proto file that is referenced in the start script.

This YAML file can contain the settings that you want to override from the defaults.

I am using this file:

http:
  address: 10.0.2.254:3000
users:
- name: admin
  password: $2a$....DELETED....
dns:
  bind_hosts:
    - 0.0.0.0
  port: 53
  upstream_dns:
    - '# https://dns10.quad9.net/dns-query'
    - 127.0.0.1:5353
  hostsfile_enabled: false
  use_private_ptr_resolvers: true
  local_ptr_upstreams:
    - 127.0.0.1:5353
log:
  enabled: true
  file: "/var/log/AdGuardHome.log"

The http section is fixing the IP address and port it will listen to.

The users section can be used to configure authentication. You can have multiple user names and passwords. The passwords are based on Bcryp2 hashing. You can use: https://www.devglan.com/online-tools/bcrypt-hash-generator to generate the hashes.

If you do not want to do user authentication, for example, if placing behind a reverse proxy that does the authentication already, you can use:

users: []

This disables the internal user name and password authentication.

In the dns section, I am doing a number of tweaks:

• upstream dns and local_ptr_upstream are configured to point to 127.0.0.1:5353 which is the locally running dnsmasq that was re-configured earlier.
• hostfile_enabled is set to false to disable /etc/hosts file usage. Personally I expect the host names defined by /etc/hosts only to be used by the local system, and shouldn't be exported to DNS.

Reverse Proxy

Reverse proxying can be used to provide for example single sign on (SSO) by handling the authentication on the reverse proxy itself. This is very simple to do. It can be done either at the virtual host level, or at a sub folder level. In nginx you can use the code:

location /adghome/ {
    proxy_pass http://10.0.2.254:3000/;
}

Or using a virtual host:

location / {
    proxy_pass http://10.0.2.254:3000/;
}

Using it

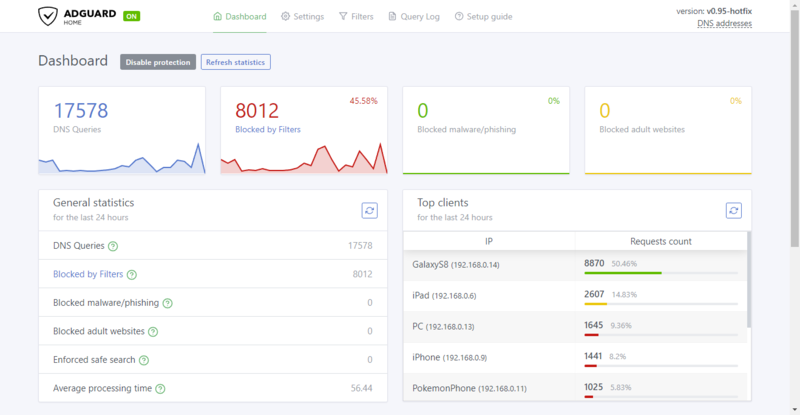

Once properly configured, clients will receive via DHCP the AdGuard Home and start using directly. You can browse to the user interface and you will see statistics and configuration.

Conclusion

In short, AdGuard Home is much like your run-of-the-mill browser ad blocker, but rather than being a plug-in on your favourite web browser, AdGuard Home is a fully-fledged server application which runs on a separate machine somewhere on your network (or perhaps even on a VPS you own). Its primary goal is to provide your network with a mechanism to actively block certain requests that websites you visit make – in this case, requests for adverts, malware, or various other malicious things.
