Ansible Custom Action Plugins

This is a continuation to my Ansible custom modules article.

Action plugins let you integrate local processing and local data with module functionality.

At the time of this writing, documentation I could find was Developing plugins - Action plugins which was somewhat out-of-date.

Introduction

Ansible action plugins are Python-based extensions that run on the control node, allowing you to intercept and modify the behavior of tasks before they're executed on remote hosts. Unlike regular modules, which run remotely, action plugins give you local control over task execution logic, argument manipulation, and result handling.

They’re especially useful when:

• You need to preprocess arguments or include local data before calling a module.
• You want to combine multiple modules into a single task.
• You’re working in environments with limited remote capabilities, or need local-only logic.

Each plugin is a class that inherits from ActionBase, and typically overrides the run() method. Inside this method, you can use _execute_module() to call the actual module, or bypass it entirely for local-only tasks.

Motivation

While building an Ansible role for nftables, incorporating ideas from Frzk’s nftables role and kormat’s iptables-apply to handle recovery from new rulesets that would break or hang Ansible's control connection it became challeging to use YAML to manage control flow, error handling, and connection state.

By writing a custom action plugin, I could:

• Run logic locally on the control node
• Use Python to apply rules and handle failures gracefully
• Keep playbooks declarative, while isolating recovery logic in code

This gives a cleaner, more robust way to experiment with firewall changes without compromising automation reliability.

Where to place Action Plugins

Custom action plugins can be placed in several locations depending on your project structure and scope:

Role or Collection scope

• Inside a role:
  Place the plugin in roles/<role_name>/action_plugins/.
  This makes it available only when the role is used.
• Inside a collection:
  Use plugins/action/ within your collection directory.
  This is ideal for distributing reusable plugins.

User or System Scoped

• User-level plugin directory:
  ~/.ansible/plugins/action/
  This makes the plugin available across all playbooks for the current user.

• System-level plugin directory:
  /usr/share/ansible/plugins/action/
  Useful for global availability across users and projects.

Configuring Plugin Paths

To make Ansible recognize custom plugin locations, you can configure the plugin path:

1. Via ansible.cfg
   Add or modify the following in your ansible.cfg file:

   [defaults]
   action_plugins = ./action_plugins:~/.ansible/plugins/action:/usr/share/ansible/plugins/action

   • Paths are colon-separated.
   • Relative paths (like ./action_plugins) are resolved from the playbook directory.
2. Via Environment Variable
   Set the ANSIBLE_ACTION_PLUGINS environment variable:

   export ANSIBLE_ACTION_PLUGINS=./action_plugins:~/.ansible/plugins/action

   This overrides the config file setting and is useful for temporary or dynamic setups.

You can inspect your current plugin paths using ansible-config dump | grep ACTION_PLUGIN_PATH.

Basic layout

#!/usr/bin/python
# Make coding more python3-ish, this is required for contributions to Ansible
from __future__ import (absolute_import, division, print_function)
__metaclass__ = type

# Base class
from ansible.plugins.action import ActionBase

class ActionModule(ActionBase):
  def run(self, tmp=None, task_vars=None):
    if task_vars is None: task_vars = dict()
    result = super().run(tmp, task_vars)
    del tmp  # tmp no longer has any effect

    # Do something here...

    return result

This is the simplest action plugin. It declares itself as a sub-class of ActionBase, and populates the task_vars structure with values and initializes result with some defaults.

Error handling

Ansible leverages Python's exception system to handle errors cleanly. Within your custom action plugin, you can raise exceptions to signal failure conditions. Start by importing the relevant classes:

from ansible.errors import AnsibleError, AnsibleFileNotFound, AnsibleAction, AnsibleActionFail

You can also use Python’s built-in exceptions if preferred.

To raise an error:

raise AnsibleFileNotFound('thisfile.txt')

By default, Ansible displays a simplified error message. To see the full stack trace, run your playbook with increased verbosity:

ansible-playbook playbook.yml -vvv

This is especially useful when debugging plugin logic or tracing failures deep in the call stack.

Diagnostics and Verbose output

Custom action plugins often need to communicate status or debug information. Ansible provides the Display class for structured output:

from ansible.utils.display import Display
display = Display()

You can then emit messages based on verbosity level:

if display.verbosity > 1:
    display.display('Verbose message')

Or use the built-in verbosity helpers:

display.v('Level 1 verbosity')
display.vv('Level 2 verbosity')
display.vvv('Level 3 verbosity')

Control verbosity from the command line using -v, -vv, or -vvv. This lets users opt into more detailed diagnostics without cluttering standard output.

Run-time environment

When writing custom action plugins, it is often useful to inspect the execution context; whether you're debugging behavior, adapting to playbook settings, or resolving file paths. Ansible exposes several runtime variables and constants that help you do just that.

Start by importing the constants module:

import ansible.constants as C

Here are some useful runtime indicators and paths:

Execution Context Flags

• self._task.diff
  Indicates if the task is running in diff mode (--diff).

• self._task.check_mode
  True if the task is running in check mode (--check).

• self._task.no_log
  True if the task or play has enabled the no_log flag.

• self._task.role
  A string with the current role, otherwise None.

Path Resolution

• self._task.get_search_path()
  Returns the search path used to resolve relative file names.

• C.DEFAULT_ROLES_PATH
  Default path(s) where Ansible looks for roles.

• C.COLLECTIONS_PATHS
  Path(s) used to locate collections.

• C.PLAYBOOK_DIR
  Directory of the current playbook being executed.

Remote File Cleanup

• C.DEFAULT_KEEP_REMOTE_FILES
  Controls whether temporary files on remote hosts are cleaned up.
  You can enable this by setting the environment variable:

  export ANSIBLE_KEEP_REMOTE_FILES=1

These variables are especially helpful when building plugins that need to behave differently based on execution mode or when resolving paths dynamically.

Accessing task parameters

Action plugins receive task parameters as a dictionary via self._task.args. These are the arguments defined in the playbook for the task invoking your plugin.

params = self._task.args

You can interact with this dictionary using standard Python methods like .get() or direct key access.

Note: Any parameters containing Jinja2 templates are rendered before the plugin is executed. This means you’ll receive fully evaluated values, not raw template strings.

This makes it easy to write plugins that behave predictably, without needing to manually resolve templating logic.

More Task Context via task_vars

In addition to parameters passed directly to your action plugin via self._task.args, Ansible provides a broader context through the task_vars dictionary. This contains all variables available to the task at runtime, including:

• Inventory & Host Variables
  • Variables from host_vars and group_vars
  • inventory_hostname, group_names, ansible_play_hosts
• Facts
  • Gathered facts like ansible_distribution, ansible_interfaces, ansible_facts
  • Custom facts from setup or set_fact
• Plabook & Role Context
  • Variables defined in vars, vars_files, or vars_prompt
  • Role defaults and vars
  • Tags: ansible_run_tags, ansible_skip_tags
• Execution Flags
  • ansible_check_mode: Whether the task is running in check mode
  • ansible_diff_mode: Whether diff mode is enabled
  • ansible_dependent_role_names: List of dependent roles
• User-defined Variables
  • Variables passed via --extra-vars
  • Any custom values defined earlier in the play

From your run method:

hostname = task_vars.get('inventory_hostname')
os_family = task_vars.get('ansible_os_family')
debug_flag = task_vars.get('my_custom_flag', False)
raw_value = task_vars.get('my_inventory_value')

Unlike self._task.args, which contains pre-rendered values, entries in task_vars may still include raw Jinja2 expressions, especially when variables are defined in inventory or playbooks using templating syntax.

To evaluate these expressions inside your plugin, use the templar:

my_value = self._templar.template(task_vars.get('my_inventory_value'))
os_family = self._templar.template(task_vars.get('ansible_os_family'))

This ensures your plugin works with fully resolved values, allowing it to behave consistently regardless of how variables were defined.

You can also use template() on dictionaries or lists to resolve nested structures.

Implementing check mode

Similar to custom modules, action plugins support check mode. When the user passes the --check flag, this will set the flag self._task.check_mode to True. This means the playbook is running in dry-run mode. See Ansible check mode.

When in check mode, the Action plugin must simulate changes without actually applying them to the system. Modules that support check mode, must report what would change or simply skip execution.

This is useful for:

• Validating playbooks before deployment
• Auditing potential changes
• Testing custom modules or logic safely

Implementing diff mode

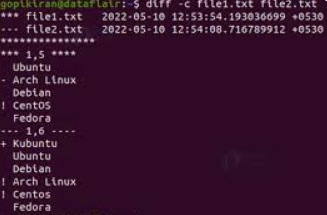

Check mode is often paired with the --diff command line argument. This will set the self._task.diff to True. When this is the case, Action plugins must show the before-and-after changes, especially those that modify files or configurations.

A quick example:

if self._task.diff and result['changed']:
  if not 'diff' in result: result['diff'] = list()
  result['diff'].append({
        'before_header': 'hdr1 (original)',
        'before': 'before\n',
        'after_header': 'hdr1 (updated)',
        'after': 'after\n',
        'prepared': '>>> Preparation',
  })

In this example, we are creating a list for the diff key. You can return multiple diff sets. If you are only returning one (1) diff set, you can simply return it directly (without wrapping it inside a list).

You can return at least before,after pair, or a prepared key. Returning all three is possible. before_header and after_header are optional.

Normally I would return before and after for when configuration files are being changed. I would use the prepared key for when we are running commands on the system. For example, running mkfs, lvcreate, etc.

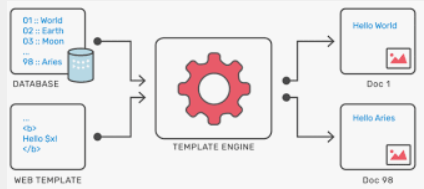

Template Rendering

When rendering templates from files within an action plugin, the following pattern ensures correctness and compatibility with Ansible’s templating engine:

• Import the required dependency:

  from ansible.template import Templar

• Locate the template file:

  template_path = self._task.args.get('template')
  srcfile = self._find_needle('templates', template_path)

  This searches for the template in the configured templates/ directories and resolves the full path.

• Adjust the loader's basedir to support {% include %} and relative paths:

  old_basedir = self._loader.get_basedir()
  self._loader.set_basedir(os.path.dirname(srcfile))

• Render the template:

  with open(srcfile, 'r') as fp:
      template = fp.read()

  tp = Templar(loader=self._loader, variables=task_vars)
  rendered = tp.template(template)

• Restore the original basedir to avoid side effects:

  self._loader.set_basedir(old_basedir)

Notes:

• Always reset the loader's basedir after rendering to prevent unexpected behavior in subsequent tasks.
• Using Templar directly gives you full control over variable resolution and template rendering, including support for Ansible-specific filters and syntax.

Calling Modules from Action Plugins

Action plugins often serve as orchestrators, combining logic, templating, and conditional behavior before delegating actual work to modules. To invoke a module from within an action plugin, use the _execute_module() method, which handles serialization, transport, and return parsing.

Example: Delegating to a Custom Module

mod_args = {
    'dest': dest,
    'files': '\n'.join(flist),
    'ro_check': ro_check if ro_check else '',
}

mod_return = self._execute_module(
    module_name='mab_prune',
    module_args=mod_args,
    task_vars=task_vars
)

Key Concepts

• module_name: This should match the name of the module file (without .py) and be resolvable via the plugin loader. If you're calling a module from your own collection, use the fully qualified name (e.g. my_namespace.my_collection.mab_prune).
• module_args: A dictionary of arguments passed to the module. These should be flat and serializable. Avoid nested structures unless your module explicitly supports them.
• task_vars: Pass the current task variables to ensure proper templating and context resolution. This includes facts, host vars, and role defaults.

Return Value

The result of _execute_module() is a dictionary that mimics the return from a normal module execution. It includes keys like:

• changed: Boolean indicating whether the module made changes.
• failed: Boolean indicating failure.
• msg: Optional message string.
• Any custom return values defined by your module.

You can use this return to control flow, emit diagnostics, or raise errors:

if mod_return.get('failed'):
    raise AnsibleActionFail("Module execution failed: %s" % mod_return.get('msg'))

Best Practices

• Avoid side effects before module execution: If your plugin modifies state before calling the module, ensure those changes are reversible in case the module fails.
• Respect check mode: If your plugin supports check mode, ensure the module you're calling does too—or skip execution when self._play_context.check_mode is True.
• Use Display.vvv() for debugging: Log the module arguments and return values at verbosity level 3+ to aid troubleshooting.

Return values

Action plugins return a dictionary that mirrors the structure of module results. This ensures consistency across tasks and allows Ansible to interpret outcomes correctly.

Common Keys

• changed (bool): Indicates whether the task made changes to the system. Set this to True only when a state transition occurred.
• failed (bool): Signals task failure. If True, Ansible halts execution unless ignore_errors is set.
• msg (str): A human-readable message describing the outcome or error.
• skipped (bool): Marks the task as intentionally skipped, often used with conditional logic.
• invocation (dict): Automatically populated metadata about how the plugin was called. Use self._get_invocation(task_vars) to include it.

Custom Return Values

You can include additional keys specific to your plugin or module logic:

return {
    'changed': True,
    'pruned_files': pruned,
    'skipped_files': skipped,
    'msg': "Pruned %d files" % len(pruned),
    'invocation': self._get_invocation(task_vars),
}

For more common return values see Common Return values.

Conclusion

Action plugins offer deep control over task execution, making them ideal for implementing custom logic, enforcing policy, and handling edge cases like connection loss or remote cleanup. But with that control comes complexity; especially around templating, context flags, and runtime behavior.

This article outlined practical patterns for building reliable, maintainable plugins: from placement and layout to diagnostics, error handling, and module delegation. The goal is not just flexibility, but predictability -- plugins that behave consistently across environments, expose their decisions clearly, and fail gracefully when needed.

In automation, predictability builds trust. And trust is what lets teams move fast without breaking things.
